The SI Editor's Navigator is designed with the user in mind to streamline navigation throughout the specifications structure, eliminating the risk of getting lost in the text and facilitating seamless movement through a Section without losing one's place. It also provides advanced and convenient editing capabilities to simplify the editing process. Some key features include:

While working in the Editing window, the Navigator will follow the cursor movement.

Getting to Know The Navigator

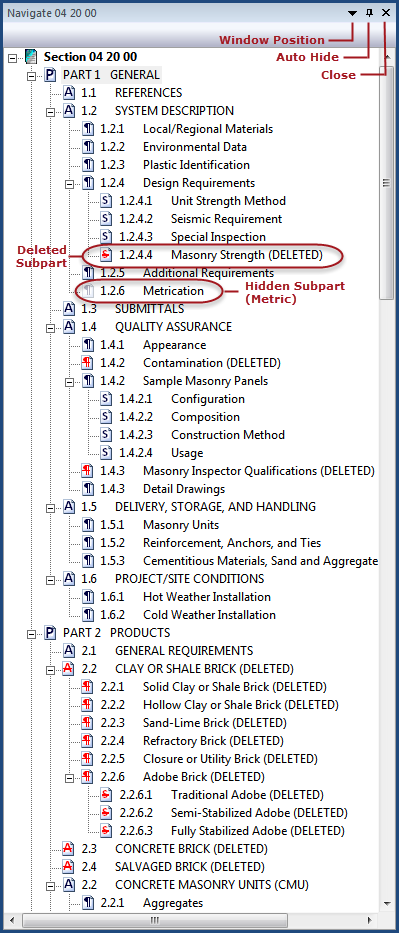

Illustration SI Editor's Navigator

Icons

Description

Illustration SI Editor's Navigator PART Icon

PART

Illustration SI Editor's Navigator ARTICLE Icon

ARTICLE

Illustration SI Editor's Navigator Paragraph Icon

Paragraph

Illustration SI Editor's Navigator Subparagraph Icon

Subparagraph

Added:

Attribute: Green with underscore

Applies to the PART, ARTICLE, Paragraph, and Subparagraph Icons

Illustration SI Editor's Navigator Redlined ARTICLE Icon

Redlined:

Attribute: Red with strikethrough

Applies to the PART, ARTICLE, Paragraph, and Subparagraph Icons

Illustration SI Editor's Navigator Hidden Paragraph Icon

Hidden:

Attribute: Transparent Opaque

Applies to the PART, ARTICLE, Paragraph, and Subparagraph Icons when elements are hidden such as added and deleted Revisions, Tailoring Options, Metric, and English measurements

Illustration Icon Indicating Important Information To NoteYou can change the Navigator settings from two locations, the View menu > Toolbars and Docking Windows > Options > Display and Navigator tab, or the Tools menu > OptionsDisplay and Navigator tab. The Use Navigator checkbox is selected by default, but an SI Editor restart is required for the changes to take effect.

The Navigator's Right-Click Menu

 Illustration Icon Indicating How To StepsClick the menu option below to navigate to a different menu option

Illustration SI Eidtor's Navigator Right-Click MenuHyperlink to the SI Editor's Navigator - Undelete TopicHyperlink to the SI Editor's Navigator - Collapse All TopicHyperlink to the SI Editor's Navigator - Expand All TopicHyperlink to the SI Editor's Navigator - Promote Subpart TopicHyperlink to the SI Editor's Navigator - Delete TopicHyperlink to the SI Editor's Navigator - Copy Without Tags TopicHyperlink to the SI Editor's Navigator - Copy TopicHyperlink to the SI Editor's Navigator - Cut TopicHyperlink to the SI Editor's Navigator - Redo TopicHyperlink to the SI Editor's Navigator - Undo TopicHyperlink to the SI Editor's Navigator - Refresh TopicHyperlink to the SI Editor's Navigator - Select Topic

The Navigator's Move Or Copy Pop-up Menu

The Navigator offers two distinct drag-and-drop methods to move or copy Subparts within the Section:

  1. Left-Click Drag-and-Drop: This is the standard method to copy or move Subparts, executed by clicking and dragging the selected Subpart to the desired location. Upon release, a confirmation window appears stating that the Subpart has been copied or moved.
  2. Right-Click Drag-and-Drop: This method provides more precise options than the standard Copy or Move commands. Execute this option by right-clicking and dragging the selected item to the desired location. Upon release, the right-click pop-up menu opens allowing you to copy or move the selected Subpart before, into, or after another Subpart.

Illustration Icon Indicating How To StepsClick the menu option below to navigate to a different menu option

Illustration SI Editor's Navigator Drag and Drop MenuHyperlink to the SI Editor's Navigator - Copy TopicHyperlink to the SI Editor's Navigator - Move Topic

Additional Learning Tools

Illustration Icon Indicating eLearning ModulesWatch The Navigator eLearning module within Chapter 3 - Editing.



Users are encouraged to visit the SpecsIntact Website's Support & Help Center for access to all of our User Tools, including Web-Based Help (containing Troubleshooting, Frequently Asked Questions (FAQs), Technical Notes, and Known Problems), eLearning Modules (video tutorials), and printable Guides.
