SI Editor Navigator - Move

In this Topic HideIn this Topic Show
  1. Move Options
  2. Example of A Moved Subpart
  3. How To Use This Feature
    1. To Move a Subpart using the Navigator's Standard Method:
    1. To move a Subpart using the Navigator's Drag-and-Drop Method:
  4. Additional Learning Tools
  5. Technical Support Information

This command can be executed from the SI Editor's Navigator's Right-click menu.

The Move command provides greater flexibility and control for rearranging Subparts within the Section. When moving Subparts, the selected Subpart will be deleted from its current position and moved to the location where the mouse button is released.

Illustration Icon Indicating Important Information To NoteWhen rearranging Subparts, they will be tracked with RevisionsThe Revisions command reveals or conceals Revisions that are tagged in the text. Text to be added is identified with underscoring and the addition tags, <ADD> and </ADD>. Whereas text to be deleted, or Redlined, is identified with overstriking and the delete tags, <DEL> and </DEL> if the project is configured to use them. When moved to another location, the selected Subpart will be deleted from its current position and added to the new location.  For the deleted Subpart, the Navigator's icon transforms to redIllustration SI Editor's Navigator Redlined ARTICLE Icon and  '(DELETED)' is appended to the end of the Subpart's Title. In contrast, the moved Subpart's icon transforms to green. While editing within the Navigator, the SI Editor's Undo and Redo commands can be used.

Move Options

The Navigator offers two distinct drag-and-drop methods for moving Subparts within the Section:

  1. Left-Click Drag-and-Drop: This is the standard method for moving Subparts, executed by clicking and dragging the selected Subpart to the desired location. Upon release, a confirmation window appears stating that the Subpart has been moved.
  2. Right-Click Drag-and-Drop: This method provides more precise options than the standard Move command. Execute this option by right-clicking and dragging the selected item to the desired location. Upon release, the right-click pop-up menu opens allowing you to either move the selected Subpart before, into, or after another Subpart.

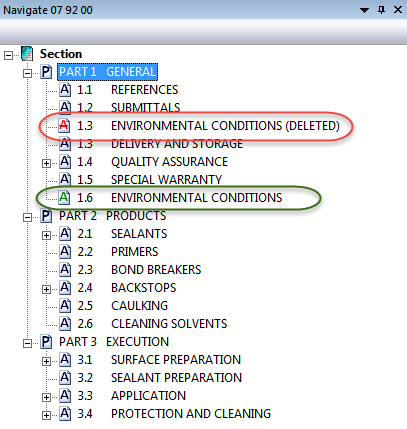

Illustration SI Editor Navigator's Right-Click Move Commands

Illustration Icon Indicating Helpful HintTo learn more about the Navigator, refer to the Navigator Overview topic.

Example of A Moved Subpart

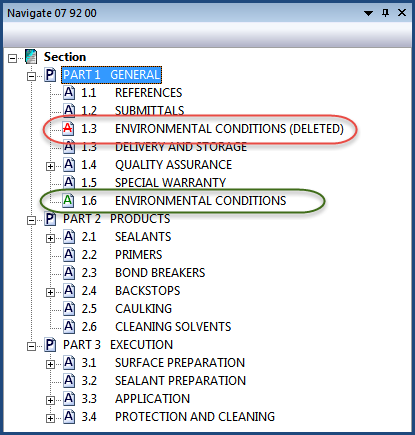

Illustration Icon Indicating Examples ProvidedIn this example, 1.3 ENVIRONMENTAL CONDITIONS was moved to 1.6 ENVIRONMENTAL CONDITIONS. As you see, the icons transform accordingly to show the original Subpart was deleted and the moved Subpart was added.

Illustration Example of A Moved Subpart

How To Use This Feature

Illustration Icon Indicating How To StepsTo Move a Subpart using the Navigator's Standard Method:

  1. In the Navigator, select the Subpart you wish to move
  2. Left-click and drag to the desired location, then release
  3. When the confirmation window opens, click OK

Illustration Icon Indicating How To StepsTo move a Subpart using the Navigator's Drag-and-Drop Method:

  1. In the Navigator, select the Subpart you wish to move
  2. Right-click and drag to the desired location, then release
  3. When the Move and Copy pop-up menu appears, select one of the following:
    1. Move Before
    2. Move Into
    3. Move After

Additional Learning Tools

Illustration Icon Indicating eLearning ModulesWatch The Navigator eLearning module within Chapter 3 - Editing.



Users are encouraged to visit the SpecsIntact Website's Support & Help Center for access to all of our User Tools, including Web-Based Help (containing Troubleshooting, Frequently Asked Questions (FAQs), Technical Notes, and Known Problems), eLearning Modules (video tutorials), and printable Guides.
