REF Tag

In this Topic HideIn this Topic Show
  1. Example
  2. Additional Learning Tools
  3. Technical Support Information
TAGS

<REF> </REF>

DESCRIPTION

This tag identifies a Reference Standard. The Organization Name and acronym, Reference Identifier, issue date and title.

SOURCE

Illustration SI Editor's Tagsbar REF buttonTagsbar button, Insert menu > Tags, or by using the keyboard shortcut F4.

RULES

Can only contain ORG, RID, NTE, and RTL TagsSpecsIntact relies on tags to control content, and formatting, automate processes, and generate reports. These special markers, like <SEC> and </SEC>, define elements and attributes within the specifications. Some tags, like <Page />, function independently. In essence, tags are the building blocks of SpecsIntact documents.  In 01 42 00 Sources for Reference Publications SectionA set of files within the Division of a Master or Job that covers specific aspects of construction only, the REF may contain OAD tags.

CHARACTER LIMITATIONS

None

Illustration Icon Indicating Important Information To NoteThe Reference tag is used to encompass a Reference.  The Reference Wizard simplifies the process of inserting References within a Reference Article. When inserting a Reference, the Reference Organization (ORG), Reference Identifier (RID), and Reference Title (RTL) are automatically generated.

Example

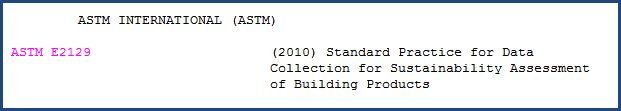

Illustration Icon Indicating Examples ProvidedIllustrated below is a Reference with its components, with tags visible:

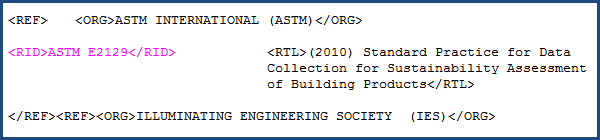

Illustration of a Reference with tags visible

Additional Learning Tools

Illustration Icon Indicating eLearning ModulesWatch the SI Editor and Section Structure Overview eLearning module within Chapter 3 - Editing.



Users are encouraged to visit the SpecsIntact Website's Support & Help Center for access to all of our User Tools, including Web-Based Help (containing Troubleshooting, Frequently Asked Questions (FAQs), Technical Notes, and Known Problems), eLearning Modules (video tutorials), and printable Guides.
