RID Tag

In this Topic HideIn this Topic Show
  1. Examples
  2. Additional Learning Tools
  3. Technical Support Information
TAGS

<RID> </RID>

DESCRIPTION

This tag identifies the Reference Identifier's acronym and ID. The RID tags appear as light magenta when viewing colors.

SOURCE

Illustration SI Editor's Tagsbar RID buttonTagsbar button, Insert menu > Tags, or by using the keyboard shortcut F4.

RULES

Can only contain text and must be surrounded by a Reference tag within the Reference ArticleAn Article within Part 1 that contains a list of the Publishing Organizations and the titles of all technical references used in the section text. The RID must appear at least once within the body of the Section, other than in 1.x REFERENCES, contained within TXT, LST, ITM, or TAB tags.

CHARACTER LIMITATIONS

Thirty (30) Characters

Illustration Icon Indicating Important Information To NoteThe Reference Identifier tag is used to encompass the reference acronym and number. Failure to observe the rules will result in inaccurate Quality Assurance Reports and Reconciliation of the 01 42 00 Sources for Reference Publication Section.

Examples

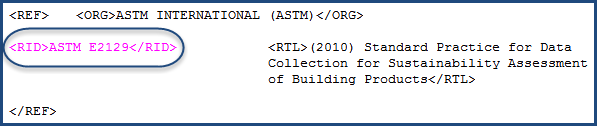

Illustration Icon Indicating Examples ProvidedIllustrated below is the Reference Identifier within the Reference Article (e.g., 1.x REFERENCES), with tags visible:

Illustration of Reference Within Section Text

Illustration Icon Indicating Examples ProvidedIllustrated below is the Reference Identifier outside the Reference Article (e.g., 1.x REFERENCES), with tags visible:

Illustration of a Reference Identifier with tags visible

Additional Learning Tools

Illustration Icon Indicating eLearning ModulesWatch the SI Editor and Section Structure Overview eLearning module within Chapter 3 - Editing.



Users are encouraged to visit the SpecsIntact Website's Support & Help Center for access to all of our User Tools, including Web-Based Help (containing Troubleshooting, Frequently Asked Questions (FAQs), Technical Notes, and Known Problems), eLearning Modules (video tutorials), and printable Guides.
