HDR Tag

In this Topic HideIn this Topic Show
  1. Examples
  2. Additional Learning Tools
  3. Technical Support Information
TAGS

<HDR> </HDR>

DESCRIPTION

This tag identifies the Section Header, which includes details on the preparing activity/responsible agency, Section dates, and the date of the Unified Master Reference List (UMRL)A list of all referenced standards cited in the Unified Facilities Guide Specifications (UFGS) Master. It is used to generate Reference Articles when performing Master text processing functions. The UMRL is also used by the SI Explorers Reference Wizard and Reference Checking features used during processing.

SOURCE

Insert menu > Tags, or by using the keyboard shortcut F4.

RULES

Can only contain text.

CHARACTER LIMITATIONS

None



Examples

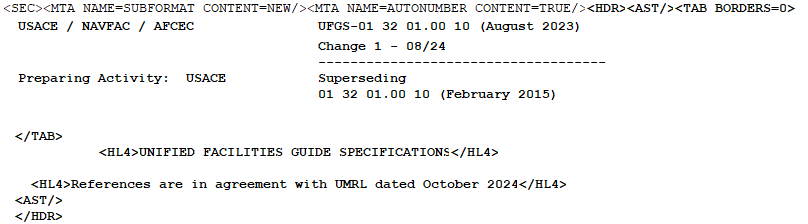

Illustration Icon Indicating Examples ProvidedIllustrated below is the Header tag, with tags visible:

Illustration of Section Header with Tags Visible

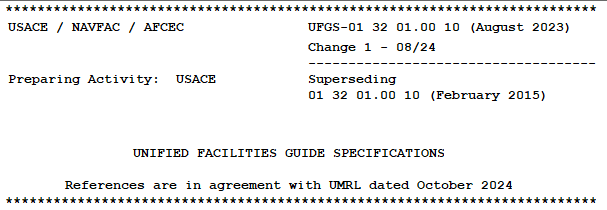

Illustration Icon Indicating Examples ProvidedIllustrated below is the Header tag, with tags hidden:

With tags visible, the Header tag looks as follows:

Additional Learning Tools

Illustration Icon Indicating eLearning ModulesWatch the SI Editor and Section Structure Overview eLearning module within Chapter 3 - Editing.



Users are encouraged to visit the SpecsIntact Website's Support & Help Center for access to all of our User Tools, including Web-Based Help (containing Troubleshooting, Frequently Asked Questions (FAQs), Technical Notes, and Known Problems), eLearning Modules (video tutorials), and printable Guides.
