SI Explorer File Menu - Properties: Specifiers

In this Topic HideIn this Topic Show
  1. Frequently Used Specifiers
  2. Print
  3. Standard Windows Commands
  4. Technical Support Information

This command can be executed from the SI Explorer's File menu and Right-click menu.

Illustration Icon Indicating How To StepsClick the Sidebar tabbed commands on the image below to see how to use each function.

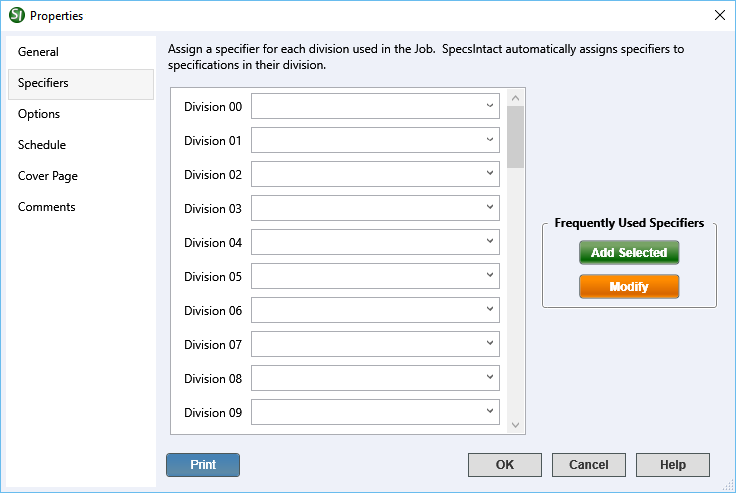

Illustration SI Explorer's File Menu - Properties: Specifiers Tab Hyperlink to the SI Explorer's Properties Menu - General Hyperlink to the SI Explorer's Properties Menu - Options Hyperlink to the SI Explorer's Properties Menu - Schedule Hyperlink to the SI Explorer's Properties Menu - Cover Page Hyperlink to the SI Explorer's Properties Menu - Comments Hyperlink to the SI Explorer's Properties Menu - Specifiers

By using this box to assign Specifiers to Divisions on the Job level, all Sections added to the Job are automatically assigned the appropriate Designer for that DivisionEach Master is made up of Divisions containing groups of Sections that cover specific construction areas. Division Names and Titles are in accordance with CSI MasterFormat™. The current MasterFormat™MasterFormat is used throughout the construction industry to format specifications for construction contract documents. The purpose of this format is to assist the user to organize information into distinct groups when creating contract documents, and to assist the user searching for specific information in consistent locations. The information contained in MasterFormat is organized in a standardized outline format within 50 Divisions (16 Divisions pre-2004). Each Division is subdivided into a number of Sections uses Division 00-49, which some of these Divisions are not currently used by MasterFormat™, therefore by default they are disabled. To enable Job Specifiers for divisions not used see Setup > Options > Specifiers tab and select the option to Allow specifiers for Divisions not used in the project MasterFormat version.

Frequently Used Specifiers

Illustration SI Explorer's Dialog Box Add Selected buttonSpecifiers can be entered directly in the text boxes, or chosen from the pull-down list generated through the Setup  > Options > Specifiers tab. Quickly add the selected specifier to the list by clicking the Add Selected button.

Illustration SI Explorer's Dialog Box Modify buttonOpens Setup > Options > Specifiers so you can create, manage, or modify the list of specifiers. This is the most efficient way to add multiple names to the list.

Print

Compiles and prints the information entered on all of the Properties tabs in report form.

Standard Windows Commands

Illustration SI Explorer's Dialog Box OK buttonThe OK button will execute and save selections made and make them partAll sections are divided into three parts: General, Products, and Execution of your Job's properties.

Illustration SI Explorer's Dialog Box Cancel buttonThe Cancel button will close the window without recording any selections or changes entered.

Illustration SI Explorer's Dialog Box Help buttonThe Help button will open the Help Topic for this window.

Users are encouraged to visit the SpecsIntact Website's Support & Help Center for access to all of our User Tools, including eLearning (video tutorials), printable Guides, a Knowledge Base containing Frequently Asked Questions (FAQs), Technical Notes and Release Notes, and Web-Based Help.
