SI Explorer File Menu - Process & Print/Publish: Header/Footer

In this Topic HideIn this Topic Show
  1. Header
  2. Footer
  3. Reports and Tables of Contents
  4. Variables
  5. Process and Print/Publish common controls
    1. Printer
    1. Process & Publish or Process & Print
    1. Process Only
    1. Save Settings
    1. Reset Settings
  6. Standard Windows Commands
  7. Additional Learning Tools
  8. Technical Support Information

Illustration SI Explorer's Toolbar Print Publish button

This command can be executed from the SI Explorer's Toolbar command, Right-click menu, or keyboard shortcut Ctrl+P.

Allows you to modify the headers and footers in the following ways:

Illustration Icon Indicating How To StepsClick the Sidebar tabbed commands on the image below to see how to use each function.

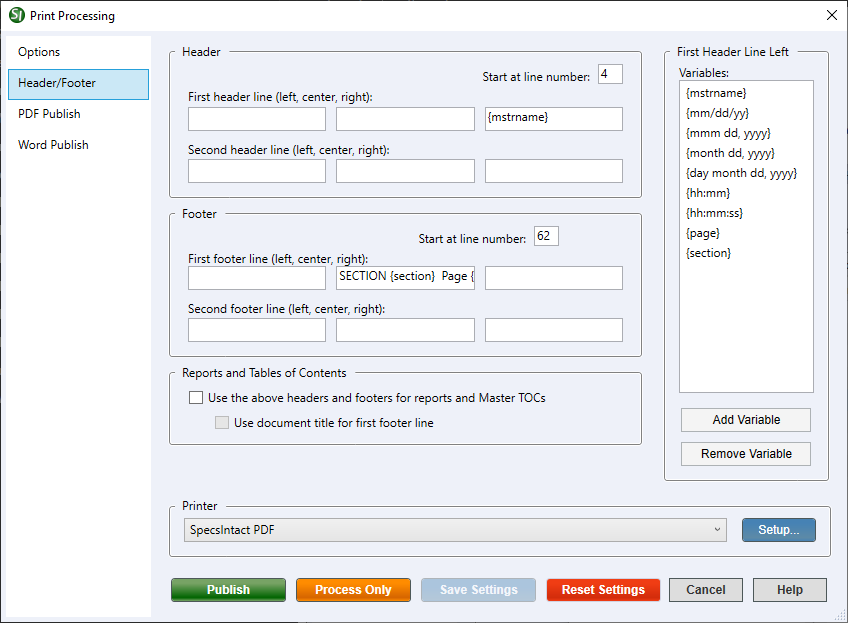

Hyperlink to the SI Explorer's File Menu -  Process & Print/Publish: Word Publish Hyperlink to the SI Explorer's File Menu -  Process & Print/Publish: PDF Publish Hyperlink to the SI Explorer's File Menu -  Process & Print/Publish: Header/Footer Hyperlink to the SI Explorer's File Menu -  Process & Print/Publish: Options Illustration SI Explorer's File Menu - Process & Print/Publish:  Header/Footer

The option to Start at line number is defaulted for the Header to begin on line 4. To adjust the line number to something other than the default setting, place the cursor in the box and type the new number.

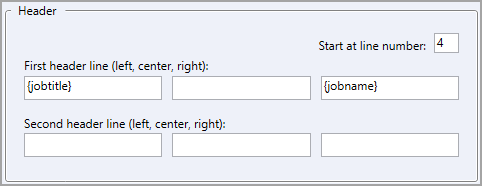

The default setting for the First Header Line for a Job is 4:

Illustration SI Explorer's File Menu - Process and Print/Publish:  Default Job Header

With the default setting the Job TitleIs the name given to a job. By default the Job Title is printed at the upper left corner of each page. The Job Title cannot contain more than 64 characters will print to the upper right margin. To change the Header or add a Second Header Line use the Variables box described below, or type the text directly into the box using the pipe symbols to set their position..

The option to Start at Line Number is defaulted for the Footer to begin on line 62. To adjust the line number to something other than the default setting, place the cursor in the box and type the new number.

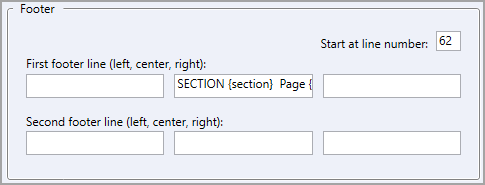

The default setting for the First Line Footer is:

Illustration SI Explorer's File Menu - Process and Print/Publish:  Default Footer

Illustration Icon Indicating Helpful HintWhile adding or modifying Headers/Footers, you can right-click within the text fields to either Cut, Copy, Paste, Select All, Undo, or Redo.

llustration SI Explorer's Process and Print/Publish: Header/Footer Tab Right-click Menu

With the default setting the SectionA set of files within the Division of a Master or Job that covers specific aspects of construction Number and Page Number will be centered at the bottom of the page. To change the Footer or add a Second Footer Line use the Variables box described below, or type the text directly into the text box using the pipe symbols to set their position.

Illustration Icon Indicating Helpful HintBy right-clicking in the Start at line number text box, you can also change its contents by using the standard Cut (Ctrl+X), Copy (Ctrl+C), and Paste (Ctrl+V) functions.

Reports and Tables of Contents

The option Use the above headers and footers for reports and Master TOCs, will use the user-defined Headers and Footers on the reports and Table of Contents. The second option Use document title for first footer line replaces the default text (abbreviated file name and page number) with the Report title, excluding the page number.

Variables

The Variables provide valid choices for Header/Footer text to be inserted on each page. To enter a Variable in a Header or Footer Line text box double-clickIs a familiar mouse function in Windows applications Executes the function associated with that object, such as such as opening a file the Variable you want to insert, or click it once and then select the Add Variable button.  You will see the Variable displayed in the text box.  Selecting the Remove Variable will reverse the action.

Process and Print/Publish common controls

Illustration SI Explorer's File Menu - Process and Print/Publish Common Controls

Printer

A drop-down box that provides a list of available printers.  The Setup button opens the Windows Print Setup window to allow setting changes like duplex printing.

Process & Publish or Process & Print

Applies the choices on the tabbed screens and sends a copy to the selected printer.

Process Only

Applies the choices on the tabbed screens and sends the results to the Processed Files folder under the Job in the SI Explorer.

Save Settings

This feature saves your choices on the tabbed screens for future use in Print Processing except for the Sections you choose to include or exclude from printing.

Illustration Icon Indicating Important Information To NoteIf you want to save some but not all settings, first select the settings you want to keep as defaults, click Save Settings, and then make the additional selections that won't be part of the saved defaults.

Illustration Icon Indicating Examples ProvidedIf you want to make permanent changes to the Headers and Footers, but you will want to select different reportsAt time of print, several reports are available such as Address Verification, Bracket Verification, and a Test Requirements List among others the next time you process Sections, you would make the changes on the Header/Footer tab first, click the Save Settings button, and then choose the Reports you want to run.

Reset Settings

Resets any custom settings on the tabbed screens to the application's default settings.

Standard Windows Commands

Illustration SI Explorer's Dialog Box Cancel buttonThe Cancel button will close the window without recording any selections or changes entered.

Illustration SI Explorer's Dialog Box Help buttonThe Help button will open the Help Topic for this window.

Additional Learning Tools

Illustration Icon Indicating eLearning ModulesWatch the Header/Footer tab Overview eLearning module within Chapter 4 - Process and Print/Publish.

Users are encouraged to visit the SpecsIntact Website's Support & Help Center for access to all of our User Tools, including eLearning (video tutorials), printable Guides, a Knowledge Base containing Frequently Asked Questions (FAQs), Technical Notes and Release Notes, and Web-Based Help.
