SI Editor View Menu - Toolbars and Docking Windows

In this Topic HideIn this Topic Show
  1. Standard
  2. Tags
  3. Navigate
  4. Options
  5. How To Use This Feature
    1. To Customize the Toolbar or Tagsbar Buttons:
    1. To Reset the Toolbar or Tagsbar Buttons To Their Default Configuration:
  6. Additional Learning Tools
  7. Technical Support Information

The Toolbars and Docking Windows view options control the on-screen display of the SI Editor's Standard Toolbar, Tagsbar, and Navigator within the SI Editor. Each of these elements offers quick shortcuts to common actions, enhancing productivity.

Standard

The Standard Toolbar option controls the visibility of the Toolbar. This Toolbar is designed for efficiency, providing immediate access to fundamental file management tasks like New, Open, Save, Print, Find, Revisions, etc. The Toolbar visibility can be toggled on or off.

To customize it, click the Toolbar Options Illustration SI Editor's Toolbar Options button at the end of the Standard Toolbar.

Illustration SI Editor's Toolbar

Tags

The Tags option controls the visibility of the Tagsbar, which is used for managing and applying specific tags or formatting to frequently used elements within the specification. The Tagsbar visibility can be toggled on or off.

To customize it, click the Toolbar Options Illustration SI Editor's Toolbar Options button at the end of the Tagsbar.

Illustration SI Editor's Tagsbar

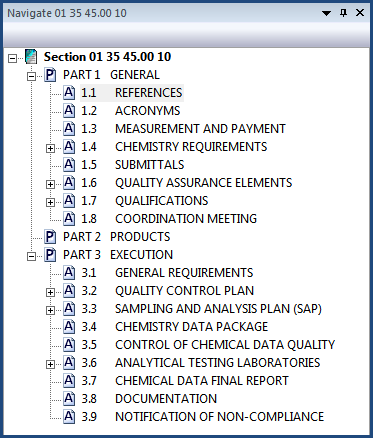

The Navigate option allows you to show or hide the Navigator, which aids in navigating through the Section structure.

Illustration SI Editor's Navigator

Options

The Options allow you to customize different aspects of the Toolbar and Docking Window behaviors and appearance.

  1. To modify the Toolbar and Docking Window, perform one of the following:
    1. Right-click on the Toolbar or Tagsbar and select Options
    2. Select the View menu > Toolbar and Docking Window > Options
    3. Select the Tools menu > Options > Display and Navigator tab
    4. Click the Toolbar Options button at the end of the Toolbar or Tagsbar > Add or Remove Buttons > Options

How To Use This Feature

Illustration Icon Indicating How To StepsTo Customize the Toolbar or Tagsbar Buttons:

  1. In the SI Editor, click the Toolbar Options button at the end of the Toolbar or Tagsbar
  2. Select Add or Remove Buttons > Standard or Tags, then check or uncheck the buttons to control their visibility

Illustration Icon Indicating How To StepsTo Reset the Toolbar or Tagsbar Buttons To Their Default Configuration:

  1. In the SI Editor, click the Toolbar Options button at the end of the Toolbar or Tagsbar
  2. Select Add or Remove Buttons >  Standard or Tags  > Reset Toolbar

Add Hyperlink

Additional Learning Tools

Illustration Icon Indicating eLearning ModulesWatch the SI Editor and Section Structure Overview and The Navigator eLearning modules within Chapter 3 - Editing.



Users are encouraged to visit the SpecsIntact Website's Support & Help Center for access to all of our User Tools, including Web-Based Help (containing Troubleshooting, Frequently Asked Questions (FAQs), Technical Notes, and Known Problems), eLearning Modules (video tutorials), and printable Guides.
